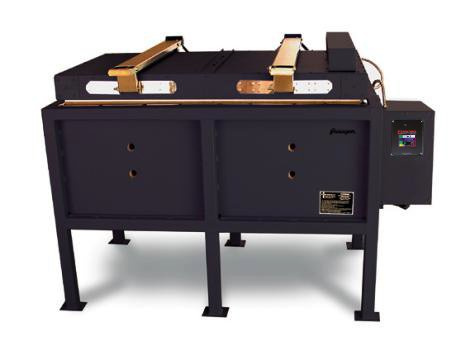

GL44 Top, Side, & Door Fire Kiln

PARAGON GL44ADTSD: Power, Precision, and Capacity for Master-Level Glasswork

The Paragon GL44ADTSD is a professional-grade kiln built to handle the complexity and scale of high-level glasswork. With a massive 44" wide by 22" deep by 16" high chamber, it’s the perfect solution for slumping curved windows, forming large fused panels, casting deep molds, or firing production loads of pendants and platters. Designed and handcrafted in Mesquite, Texas, the GL44ADTSD is trusted by production studios and educators alike—and built to perform day in and day out.

Top and Sidewall Heating with Programmable Heat Balance

The GL44ADTSD features powerful heating elements in the lid and all four sidewalls, allowing full control over heat direction and distribution. Using Paragon’s power ratio technology, you can fine-tune the balance of heat between top and sides in 10% increments. Whether your project needs more overhead heat or even, immersive warmth for bending and sagging, you can dial in exactly what’s required for each firing.

This flexible configuration is especially valuable for tall molds, reactive glass effects, or full-panel fusion projects where temperature consistency across layers is critical.

Built for Slumping, Casting, and Production

• 16-inch chamber height offers the vertical clearance needed for deep slumps, ring molds, or layered castings.

• Sidewall elements on four walls provide precision control for complex shaping or sculptural work.

• Firebrick bottom fits two 20-inch square shelves—perfect for wide-format pieces or batching pendant trays. Fiber paper is recommended when firing over shelf seams.

Engineered Lid and Frame for Strength and Ease

• Patented LiteLid counter-balance system makes the heavy lid easy to lift, with no ceiling-mounted pulleys or cords needed. Dual spring arms reduce strain and wear on the kiln’s firebrick rim.

• Pinless lid elements are mounted in precision-cut grooves inside the 3-inch ceramic fiberboard and 1-inch fiber blanket lid insulation. The wider coil diameter secures the elements in place without clips or pins.

• Floating truss lid design allows for natural expansion, reducing long-term lid wear and improving seal integrity.

• Welded 2-inch steel frame reinforces the kiln body for structural strength and consistent alignment over years of use.

Designed for Demanding Studios

• Four peepholes on the front allow for direct visual inspection during firing.

• Double heat shield and vented switch box keep components cool and operational under continuous use.

• Nickel-plated copper wiring, insulated with high-temp glass braid, ensures maximum conductivity and heat resistance.

Powered by the SENTINEL Controller

Every GL44ADTSD is equipped with the SENTINEL Smart Touch digital controller, giving you modern firing control with intuitive programming. Easily manage ramp-hold schedules, balance top and side heat, monitor live firing progress, and calculate power usage—all through a sealed touchscreen interface designed for studio conditions.

Who Is This Kiln For?

• Advanced glass artists producing architectural glass panels, sculpture, or complex multi-layer work

• Production studios firing daily with repeatable precision

• Schools, residency programs, and institutions that demand both capacity and reliability

• Anyone needing total control over how and where heat is applied within a large kiln

Built with Pride in Mesquite, Texas

Handcrafted by experienced kiln builders, the Paragon GL44ADTSD stands as one of the most robust and capable glass kilns available today. Designed for decades of creative output, this kiln is the heart of any serious glassmaking operation.
